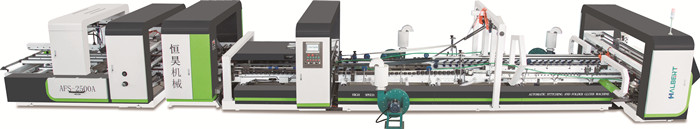

AFS-2500A High-Speed Automatic Stitching And Folder Gluer Machine
Corners Carton Box Making Machine
Machine features
The machine is composed of vacuum paper feeding part and stapling
part. Digital display control, PLC computer amplitude modulation,
double frequency conversion synchronous operation, with simple,
fast, reliable and accurate control mode, automatic paper feeding,
automatic stitching and folding, automatic counting, automatic
stacking output, high speed energy saving, labor cost saving.
Performance Characte
1. Automatic box folder gluer machine is used for side gluing of
paperboard box.
2 .It's ideal equipment for printing & packaging industry because
of its stability, versatility and flexibility.
3. It's available to paste various boxes,like medicine box,
cosmetics box, Tea box, toy box, mask box. glove box etc..
5. Available to count automatically.
6. The feeding part is controlled by servo motor, which is more
advanced and more stable.
7. high automatic, easy and convenient for operation.
Specifications
| PARAMETER |
| Model | AFS-2500A |
| Max. Paper Width | 1000mm |
| Min. Paper Width | 300mm |
| Machine Width | 4.2m |
| Machine Length | 16m |
| Max. Paper Length | 2500mm |
| Min. Paper Length | 880mm |
| Max. TS Width | 40mm |
| Power Required | 28.5Kw |
| Installation Area | 16000×4200mm |
| Stitching Speed(Nails/Min) | 1100 |
| Machine Weight | 12.5T |
| Pitch of Nails for Single Nail and Double Nails (Min.-Max.) | 30-90mm |
| Pitch of Nails for Intensive Nail(Min.-Max.) | 30-70mm |
| Paste Speed | 130 Meter/Min |
| Air Pressure | 0.6-0.8Mpa |
Production Component
 |  |  |
Feeder Section 1.Adjustable feeding belts to ensure easy adjustment,stable and
smoothly feeding. 2.Continuously Variable Speeder to ensure feeding internal and
stable transmission. 3.One-touch Pneumatic Knife, easy to adjustment of feeding belts. | Aligner section
The paper board sent from feeder section will be corrected by
aligner section to ensure transmission accurately. Pressing drive pressure can be adjusted up and down to accommodate
different
paper board thickness. | Pre-folding section
Special first folding line pre-fold 180°. third line 165° ,which
perfectly meeting the requirements of automatic packaging industry. |
 |  |  |
Crash Lock Bottom Section
Compete set of crash lock bottom device makes the lock bottom Part
perfectly .Sectional-type upper Belt board with special design. | Lower Gluing Tank
Lower gluing tank is in large volume.
Easy to remove and clean.
Electronic upper gluing system by guns. | Folding and Closing
The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side ,the
belt speed can be adjusted separately and correct the way of box
running to ensure straightly delivery. |
 |  |  |
Trombone Section
Up and down belt can be adjusted separately.Equipped with photo
electronic counting device and kicking paper device, which can
press the paper after accounting and make it easy to pack . Also
equipped with feeding paper inspection device | Transmission
Equipped with special additional sponge belt for the press of boxes
valley part.Upper section moves back and forward, allowing for
different box length. | 4 and 6-corner Device
Motorized and untimed electronic back folding system with
intelligent servo motor technology. |
 |  |  |
Memory Function
When setting a job, board of machine have it’s own position.
Controlled by servo driver, the memory control system worked by
saving data of board positioning, which have realized artificial
intelligence and highly improved the efficiency and precision of
box forming. | Memory Function-1
When setting a job, board of machine have it’s own position.
Controlled by servo driver, the memory control system worked by
saving data of board positioning, which have realized artificial
intelligence and highly improved the efficiency and precision of
box forming. | Spraying System
Equipped with three guns, convenient in the production of 4/6
corner box and various special-shaped box, gluing quickly and
accurately sizing. |
Product display
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support
to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send
technicians (engineers) to your factory for installation and
training. You shall pay round trip air fare and accommodations,
plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For
special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery.
Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
